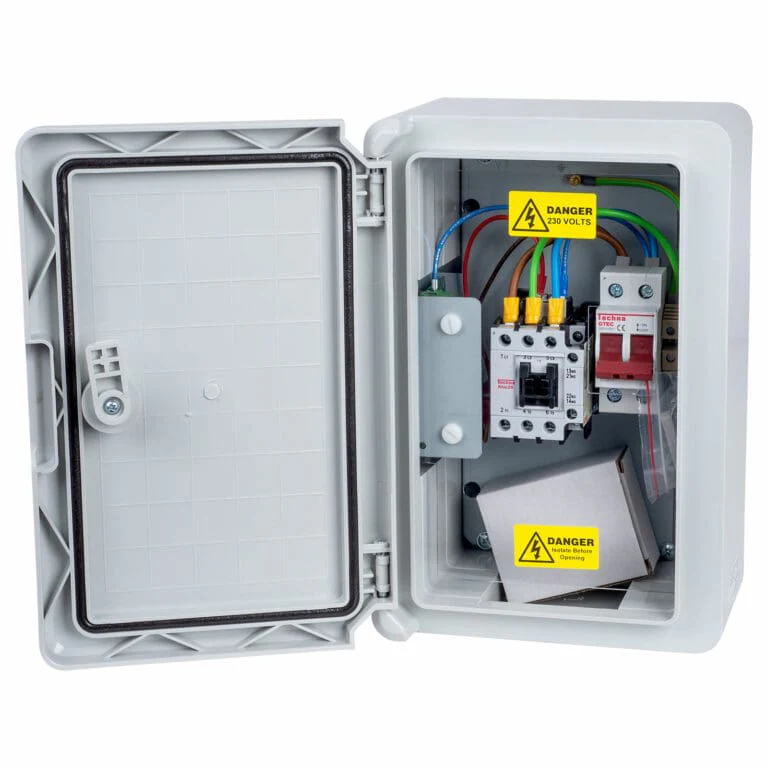

TheĀ IP-EVCP-RCĀ from Matt:E is an IP65 rated, single phase connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation. Matt:e IP-EVCP-RC range is available in 60a, 80a and 100a load curtailment.
It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv) and has the optional additional functionality forĀ load curtailmentĀ in line with Regulation 722.311.20, isolating the charge point from the supply once the house consumption rises above the pre-set limit (60A) and automatically restores the power to the charge point when the load falls back to a satisfactory level.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
TheĀ IP-EVCP-RCĀ from Matt:E is an IP65 rated, single phase connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation. Matt:e IP-EVCP-RC range is available in 60a, 80a and 100a load curtailment.
It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv) and has the optional additional functionality forĀ load curtailmentĀ in line with Regulation 722.311.20, isolating the charge point from the supply once the house consumption rises above the pre-set limit (60A) and automatically restores the power to the charge point when the load falls back to a satisfactory level.
